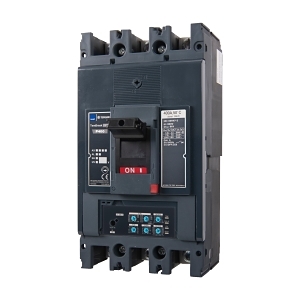

Product Name/Title: Terasaki TemBreak PRO MCCB 400 Frame 50kA 3P 250A Basic Electronic with GF
Brand: NHP
SKU: P400N3250BEG
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker with Earth Fault Protection
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Short Circuit Breaking Capacity: 50 kA
- Long Time Overload Protection Adjustment Range: 92-250 A
- Instantaneous Protection Adjustment Range: 750-3000 A
- Rated Insulation Voltage: 800 V
- Rated Frequency: 50-60 Hz
- Electrical Life: 6000 cycles
- Mechanical Life: 15000 cycles
- Cable Cross Section Range: 35-400 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: 50 °C
- Dimensions (H x L x W): 260mm x 145mm x 140mm
- Weight: 4.3 kg
Key Features
- Electronic release trip unit for precise protection.
- Integrated earth fault protection for enhanced safety.
- Suitable for isolation and front-side connection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in commercial buildings
- General: Protection of electrical circuits from overload and short circuits
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and operational costs.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 400 Frame 50kA 3P 250A Basic Electronic with GF is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
Non-Returnable & Non-Cancellable
