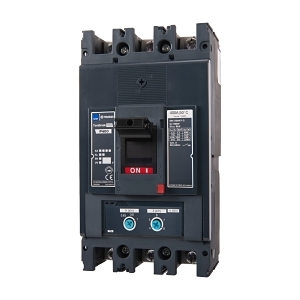

Product Name/Title: Terasaki TemBreak PRO MCCB 400 Frame 50kA 3P 400A Adj. Thermal Adj. Magnetic
Brand: NHP
SKU: P400N3400TM
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 400A
Technical Specifications
- Rated Current: 400 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 50 kA
- Rated Service Short Circuit Breaking Capacity: 50 kA
- Type of Protection: Thermal/magnetic release
- Trip Curve: Adjustable thermal, adjustable magnetic
- Frame Size Rating: 400 A
- Long Time Overload Protection Adjustment Range: 250-400 A
- Instantaneous Protection Adjustment Range: 2000-4000 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity (ICU): 12 kA
- Rated Short Circuit Breaking Capacity (ICS): 12 kA
- Rated Impulse Withstand Voltage: 8 kV
- Over Voltage Category: IV
- Electrical Life: 6000 cycles
- Mechanical Life: 15000 cycles
- Cable Cross Section Range: 35-400 mm²
- Dimensions (H x L x W): 260mm x 151mm x 140mm
- Weight: 4.3 kg
Key Features
- Adjustable thermal and magnetic trip settings for customized protection.
- High short-circuit breaking capacity of 50 kA.
- Suitable for isolation and front-side connection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical panels in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed to operate efficiently in a wide range of temperatures and humidity levels.
Warranty Information
Standard warranty applies, please check with the manufacturer for details.
Available Now
The Terasaki TemBreak PRO MCCB 400 Frame 50kA 3P 400A is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
