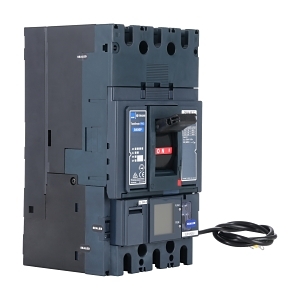

Product Name/Title: Terasaki TemBreak PRO MCCB 400 Frame 50kA 4P 400A Smart Electronic
Brand: NHP
SKU: P400N4400SE
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Smart Circuit Breaker
Technical Specifications
- Rated Current: 400 A
- Number of Poles: 4
- Max Rated Operation Voltage: 690 V
- Short Circuit Breaking Capacity: 50 kA
- Long Time Overload Protection Adjustment: 160-400 A
- Instantaneous Protection Adjustment: 1200-4800 A
- Rated Insulation Voltage: 800 V
- Electrical Life: 6000 cycles
- Mechanical Life: 15000 cycles
- Power Loss per Pole: 28.4 W
- Cable Cross Section Range: 35-400 mm²
- Dimensions (H x L x W): 260mm x 145mm x 185mm
- Weight: 5.7 kg
Key Features
- Electronic release trip unit for enhanced protection.
- Integrated earth fault protection.
- Modbus TCP communication capability.
- Zone selective interlocking function.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical panels in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed to operate efficiently in a wide range of temperatures and humidity levels.
Warranty Information
Standard warranty applies, please check with the manufacturer for specific terms.
Available Now
The Terasaki TemBreak PRO MCCB 400 Frame 50kA 4P 400A Smart Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
