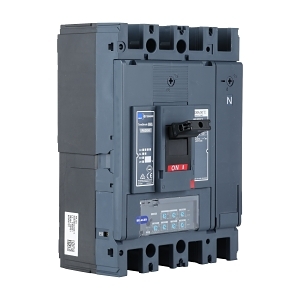

Product Name/Title: Terasaki TemBreak PRO MCCB 630 Frame 110kA 4P 630A Smart Electronic
Brand: NHP
SKU: P630S4630SE
Alternatively Known As: Terasaki MCCB, TemBreak PRO Circuit Breaker, Smart Electronic Circuit Breaker
Technical Specifications
- Rated Current: 630 A
- Number of Poles: 4
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 110 kA
- Rated Service Short Circuit Breaking Capacity: 110 kA
- Trip Curve: LSIG
- Long Time Overload Protection Adjustment Range: 250-630 A
- Integrated Earth Fault Protection: Yes
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity: 12 kA
- Integrated Communication Function: Yes
- Mechanical Life: 15000 cycles
- Dimensions (H x L x W): 260mm x 145mm x 185mm
- Weight: 6.6 kg
Key Features
- Electronic release trip unit for precise protection.
- Integrated energy metering and communication functions.
- Zone selective interlocking for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in large buildings
- General: Protection of electrical circuits from overloads and short circuits
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Energy-efficient design reduces power loss and enhances system reliability.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 630 Frame 110kA 4P 630A Smart Electronic is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.
Non-Returnable & Non-Cancellable
