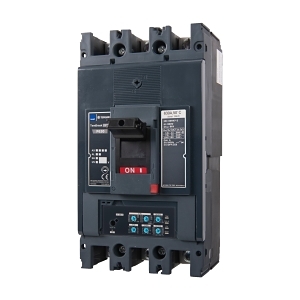

Product Name/Title: Terasaki TemBreak PRO MCCB 630 Frame 50kA 3P 630A Basic Electronic
Brand: NHP
SKU: P630N3630BE
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 630A
Technical Specifications
- Rated Current: 630 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 50 kA
- Rated Service Short Circuit Breaking Capacity: 50 kA
- Trip Curve: LSI
- Long Time Overload Protection Adjustment Range: 230-630 A
- Instantaneous Protection Adjustment Range: 1890-6930 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity: 12 kA
- Power Loss: 156 W
- Mechanical Life: 15000 cycles
- Electrical Life: 4000 cycles
- Pollution Degree: 3
- Max Operating Temperature: 70 °C
- Storage Temperature: -10-70 °C
- Dimensions (H x L x W): 260mm x 145mm x 140mm
- Weight: 5 kg
Key Features
- Electronic release trip unit for precise protection.
- 50 kA short circuit breaking capacity.
- Suitable for isolation and front-side connection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance.
Environmental Benefits
- Designed to operate efficiently in a wide temperature range.
Warranty Information
Standard warranty applies.
Available Now
The Terasaki TemBreak PRO MCCB 630 Frame 50kA 3P 630A is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
