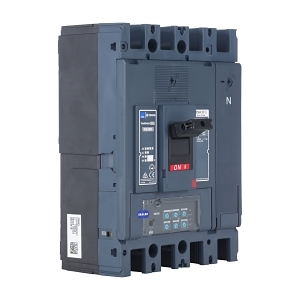

Product Name/Title: Terasaki TemBreak PRO MCCB 630 Frame 50kA 4P 630A Basic Electronic
Brand: NHP
SKU: P630N4630BE
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 630A
Technical Specifications
- Rated Current: 630 A
- Number of Poles: 4
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 50 kA
- Rated Service Short Circuit Breaking Capacity: 50 kA
- Trip Curve: LSI
- Long Time Overload Protection Adjustment Range: 230-630 A
- Instantaneous Protection Adjustment Range: 1890-6930 A
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity (ICU): 12 kA
- Rated Short Circuit Breaking Capacity (ICS): 12 kA
- Power Loss per Pole: 52 W
- Electrical Life: 4000 cycles
- Mechanical Life: 15000 cycles
- Cable Cross Section Range: 35-400 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: 50 °C
- Maximum Operating Temperature: 70 °C
- Storage Temperature: -10-70 °C
- Allowable Relative Humidity: 0-85 %
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 260mm x 145mm x 185mm
- Weight: 6.6 kg
Key Features
- Electronic release trip unit for precise protection.
- High breaking capacity of 50 kA for reliable circuit protection.
- Suitable for isolation and front-side connection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed to operate efficiently in a wide range of temperatures and humidity levels.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 630 Frame 50kA 4P 630A Basic Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
