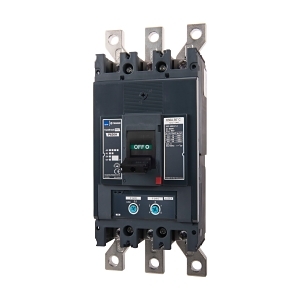

Terasaki TemBreak PRO MCCB 630 Frame 70kA 3P 630A Adj. Thermal Adj. Magnetic

$2,453.20 List price: $3,257.50

+ −

30 Days Return Delivery Options

Weight: 5.000 kg

Description

Product Name/Title: Terasaki TemBreak PRO MCCB 630 Frame 70kA 3P 630A Adj. Thermal Adj. Magnetic

Brand: NHP

SKU: P630H3630TM

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 630A

Technical Specifications

Rated Current: 630 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 70 kA
Rated Service Short Circuit Breaking Capacity: 70 kA
Type of Protection Trip Unit: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Frame Size Rating: 630 A
Long Time Overload Protection Adjustment Range: 400-630 A
Instantaneous Protection Adjustment Range: 2520-5040 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity (ICU): 12 kA
Rated Impulse Withstand Voltage: 8 kV
Mechanical Life Service Cycles: 15000 cycles
Max Vibration Acceleration: 19 m/s²
Cable Cross Section Range: 35-400 mm²
Dimensions (H x L x W): 260mm x 151mm x 140mm
Weight: 5 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High breaking capacity of 70 kA for reliable short circuit protection.
Suitable for isolation and front-side connection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical protection in commercial buildings
General: Suitable for various electrical installations requiring circuit protection

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed to operate efficiently in a wide range of temperatures and humidity levels.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 630 Frame 70kA 3P 630A is available now for immediate purchase. Ideal for industrial and commercial electrical protection applications.
