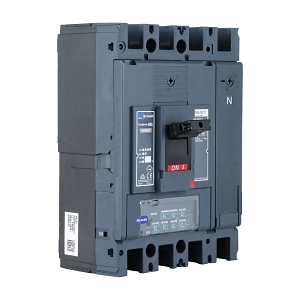

Product Name/Title: Terasaki TemBreak PRO MCCB 630 Frame 70kA 4P 630A Basic Electronic with GF
Brand: NHP
SKU: P630H4630BEG
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker with Ground Fault
Technical Specifications
- Rated Current: 630 A
- Number of Poles: 4
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 70 kA
- Rated Service Short Circuit Breaking Capacity: 70 kA
- Trip Curve: LSIG
- Long Time Overload Protection Adjustment Range: 230-630 A
- Instantaneous Protection Adjustment Range: 1890-6930 A
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity (ICU): 12 kA
- Rated Short Circuit Breaking Capacity (ICS): 12 kA
- Power Loss: 156 W
- Mechanical Life: 15000 cycles
- Electrical Life: 4000 cycles
- Pollution Degree: 3
- Rated Surrounding Temperature: 50 °C
- Maximum Operating Temperature: 70 °C
- Storage Temperature: -10-70 °C
- Allowable Relative Humidity: 0-85 %
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 260mm x 145mm x 185mm
- Weight: 6.6 kg
Key Features
- Electronic release trip unit for precise protection.
- Integrated earth fault protection for enhanced safety.
- High short-circuit breaking capacity of 70 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed to operate efficiently in a wide range of temperatures and humidity levels.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 630 Frame 70kA 4P 630A Basic Electronic with GF is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
