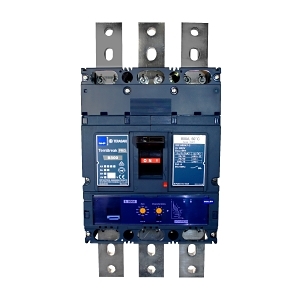

Product Name/Title: Terasaki TemBreak PRO MCCB 800 Frame 100kA 3P 800A Basic Electronic
Brand: NHP
SKU: B800G3800BE
Alternatively Known As: MCCB, Circuit Breaker, Electronic Circuit Breaker
Technical Specifications
- Rated Current: 800 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 100 kA
- Rated Service Short Circuit Breaking Capacity: 50 kA
- Trip Curve: LSI
- Long Time Overload Protection Adjustment Range: 320-800 A
- Instantaneous Protection Adjustment Range: 2000-9600 A
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity: 25 kA at 690 V AC
- Power Loss: 280 W
- Electrical Life: 4000 cycles
- Mechanical Life: 10000 cycles
- Max Vibration Acceleration: 19 m/s²
- Max Operating Temperature: 70 °C
- Dimensions (H x L x W): 433mm x 145mm x 210mm
- Weight: 9.1 kg
Key Features
- Electronic release trip unit for precise protection.
- High breaking capacity of 100 kA at 415 V.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical panels in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss during operation.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 800 Frame 100kA 3P 800A Basic Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
Non-Returnable & Non-Cancellable
