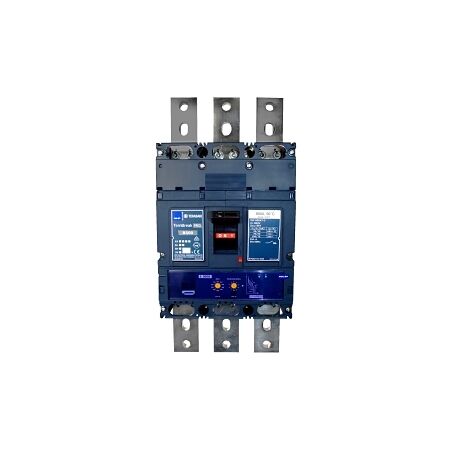

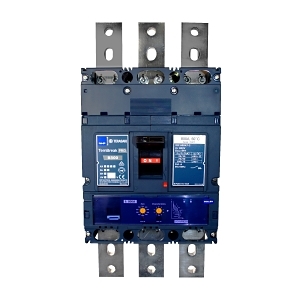

Product Name/Title: Terasaki TemBreak PRO MCCB 800 Frame 125kA 3P 630A Basic Electronic
Brand: NHP
SKU: B800P3630BE
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 630A
Technical Specifications
- Rated Current: 630 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 125 kA
- Rated Service Short Circuit Breaking Capacity: 94 kA
- Trip Curve: LSI
- Frame Size Rating: 800 A
- Long Time Overload Protection Adjustment Range: 250-630 A
- Instantaneous Protection Adjustment Range: 1563-7560 A
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity (ICU): 25 kA
- Rated Short Circuit Breaking Capacity (ICS): 20 kA
- Short Time Withstand Current (ICW): 10 kA
- Rated Impulse Withstand Voltage: 8 kV
- Over Voltage Category: IV
- Electrical Life: 4000 cycles
- Mechanical Life: 10000 cycles
- Max Vibration Acceleration: 19 m/s²
- Max Vibration Frequency: 16.7 Hz
- Max Vibration Duration: 12 min
- Pollution Degree: 3
- Rated Surrounding Temperature: 50 °C
- Maximum Operating Temperature: 70 °C
- Storage Temperature: -10-70 °C
- Allowable Relative Humidity: 0-85 %
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 433mm x 182mm x 210mm
- Weight: 14.8 kg
Key Features
- Electronic release trip unit for precise protection.
- High short-circuit breaking capacity of 125 kA.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and operational costs.
Warranty Information
Standard warranty applies, please check with the supplier for details.
Available Now
The Terasaki TemBreak PRO MCCB 800 Frame 125kA 3P 630A Basic Electronic is available now for immediate purchase. Ideal for industrial and commercial applications.
