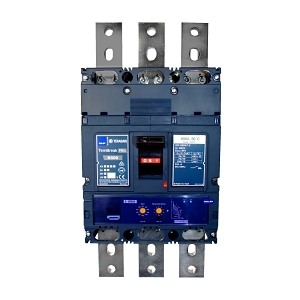

Product Name/Title: Terasaki TemBreak PRO MCCB 800 Frame 125kA 3P 630A Basic Electronic with Ground Fault
Brand: NHP
SKU: B800P3630BEG
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker with Ground Fault
Technical Specifications
- Rated Current: 630 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 125 kA
- Rated Service Short Circuit Breaking Capacity: 94 kA
- Trip Curve: LSIG
- Frame Size Rating: 800 A
- Long Time Overload Protection Adjustment Range: 250-630 A
- Instantaneous Protection Adjustment Range: 1563-7560 A
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity: 25 kA at 690 V AC
- Rated Impulse Withstand Voltage: 8 kV
- Mechanical Life: 10,000 cycles
- Electrical Life: 4,000 cycles
- Dimensions (H x L x W): 433mm x 140mm x 210mm
- Weight: 14.8 kg
Key Features
- Electronic release trip unit for precise protection.
- Integrated earth fault protection for enhanced safety.
- High short circuit breaking capacity of 125 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in commercial buildings
- General: Protection of electrical circuits from overload and short circuits
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and operational costs.
Warranty Information
Standard warranty of 12 months against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 800 Frame 125kA 3P 630A is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
Non-Returnable & Non-Cancellable
