21MM-MV532

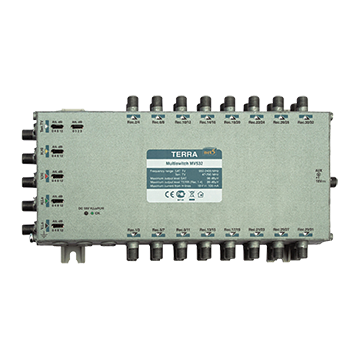

TERRA 5 Wire Multiswitch 5 In 32 Out Remote Powered


$1,096.40 List price: $1,429.10
+

Weight: 3.000 kg

Product Name/Title: TERRA 5 Wire Multiswitch 5 In 32 Out Remote Powered

Brand: Matchmaster

SKU: 21MM-MV532

Alternatively Known As: 5x32 Multiswitch, Satellite Multiswitch, Remote Powered Multiswitch

Technical Specifications
  • Input Frequency: 950-2400 MHz
  • Power Supply: 12V DC remote powering
  • Output Impedance: 75 Ohm
  • Isolation: >25 dB between inputs
  • Insertion Loss: <5 dB
  • Dimensions: 350mm x 250mm x 44mm
  • Dimensions (H x L x W): 44mm x 250mm x 350mm
  • Weight: 3.0 kg
Key Features
  • Supports distribution of satellite and terrestrial signals.
  • Remote powered for flexible installation.
  • Allows connection of multiple satellite receivers.
Professional Installation Requirements
  • Professional installation is recommended to ensure optimal setup and performance.
Applications
  • Residential: Multi-room audio and video distribution
  • Commercial: Hotels, apartments, and large buildings requiring extensive signal distribution
  • General: Any installation needing multiple satellite or antenna signals to be distributed
Standards & Compliance
  • Complies with AS/NZS 4251 for safety and performance standards.
Environmental Benefits
  • Efficient use of materials in construction minimizes environmental impact.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The TERRA 5 Wire Multiswitch 5 In 32 Out Remote Powered is available now for immediate purchase. Ideal for residential and commercial signal distribution needs.

Brochure (21mm-mv532_brochure.pdf, 368 Kb) [Download]

Manual (21mm-mv532_manual.pdf, 261 Kb) [Download]

Full Product Catalogue (full-product-catalogue.pdf, 25,988 Kb) [Download]
