LC1D65008E7

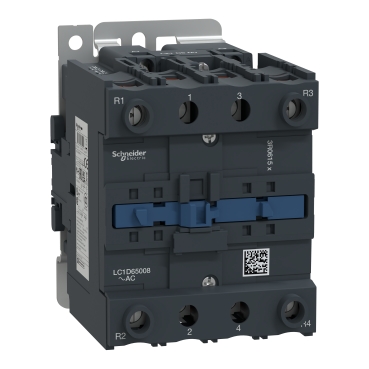

TeSys D, Contactor, 4P(2NO+2NC), AC-1 <=440V 80A,48V AC 50/60Hz coil


$1,411.10 List price: $2,116.70
+

Weight: 1.450 kg

Product Name/Title: TeSys D, Contactor, 4P(2NO+2NC),AC-1 <=440V 80A,48V AC 50/60Hz coil

Brand: Clipsal

SKU: LC1D65008E7

Alternatively Known As: TeSys Contactor, 4 Pole Contactor, AC Contactor, Motor Contactor

Technical Specifications
  • Rated operational voltage: <= 1000 V AC 25...400 Hz
  • Rated insulation voltage: 600 V CSA certified
  • Rated breaking capacity: 1000 A at 440 V
  • IP degree of protection: IP20
  • Control circuit voltage: 48 V AC 50/60 Hz
  • Dimensions (H x L x W): 127mm x 125mm x 85mm
  • Weight: 1.45 kg
Key Features
  • 4 poles with 2 normally open and 2 normally closed contacts.
  • Rated operational current of 80A at <= 440V AC.
  • Mechanical durability of 6 million cycles.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Motor control, automation systems
  • Commercial: HVAC systems, lighting control
Standards & Compliance
  • Complies with IEC 60947 for safety and performance standards.
Environmental Benefits
  • Complies with environmental regulations and standards.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal TeSys D Contactor is available now for immediate purchase. Ideal for industrial and commercial applications.

LC1D65008E7 (LC1D65008E7, 248 Kb) [Download]
