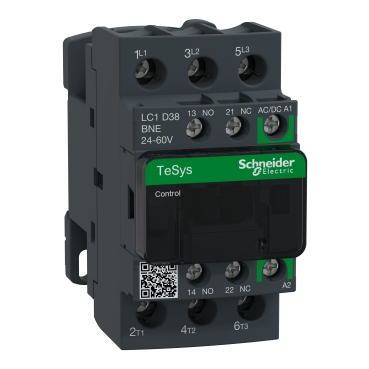

Product Name/Title: TeSys D, Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 38A, 24 to 60VAC/DC coil
Brand: Clipsal
SKU: LC1D38BNE
Alternatively Known As: TeSys Deca Contactor, LC1D38BNE, 3P Contactor
Technical Specifications
- Rated operational voltage: <= 690V AC
- Rated operational current: 38A at <= 440V AC-3
- Insulation resistance: > 10 MOhm for signalling circuit
- IP degree of protection: IP20
- Control circuit type: AC/DC at 50/60 Hz
- Inrush power: 15 VA at 50/60 Hz
- Operating time: 45...55 ms closing, 20...90 ms opening
- Dimensions (H x L x W): 85mm x 92mm x 45mm
- Weight: 0.442 kg
Key Features
- 3 poles with 3 normally open contacts
- Rated operational current of 38A at 440V AC-3
- Coil voltage range of 24 to 60VAC/DC
- Mechanical durability of 15 million cycles
- Electrical durability of 1.8 million cycles at 35A AC-3
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control and resistive load applications
Standards & Compliance
- Complies with EN/IEC 60947-4-1 and other relevant standards.
Environmental Benefits
- Complies with environmental standards and regulations.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal TeSys D Contactor is available now for immediate purchase. Ideal for industrial motor control applications.
