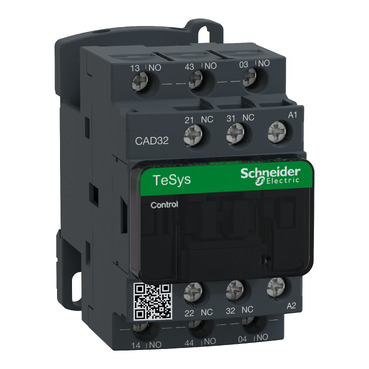

Product Name/Title: TeSys K, Control Relay, 3NO+2NC, 0 to 690V, 415VAC 50/60Hz standard coil, screw clamp
Brand: Clipsal
SKU: CAD32N7
Alternatively Known As: TeSys Control Relay, CAD32N7 Relay, Clipsal Control Relay
Technical Specifications
- Rated operational voltage: <= 690V AC
- Control circuit type: AC at 50/60 Hz
- Rated insulation voltage: 600V UL certified
- Rated impulse withstand voltage: 6 kV
- Conventional free air thermal current: 10 A at 60 °C
- Rated short-time withstand current: 100 A for 1 second
- Operating temperature: -40 to 60 °C
- Dimensions (H x L x W): 77mm x 84mm x 45mm
- Weight: 0.58 kg
Key Features
- 3 Normally Open (NO) and 2 Normally Closed (NC) contacts
- Rated operational voltage up to 690V AC
- Screw clamp terminals for easy connections
- Mechanical durability of 30 million cycles
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control circuits in machinery and equipment
Standards & Compliance
- Complies with EN/IEC 60947-5-1 for safety and performance standards.
Environmental Benefits
- Product complies with environmental regulations and standards.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal TeSys K Control Relay is available now for immediate purchase. Ideal for industrial applications requiring reliable control solutions.
