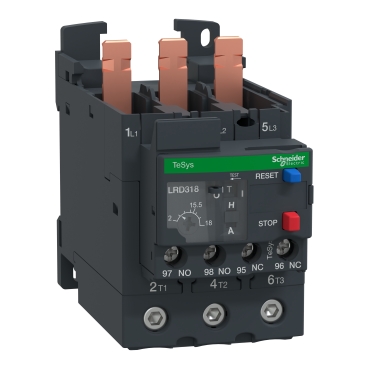

Product Name/Title: TeSys LR.D, Thermal overload relay, TeSys Deca, 690VAC, 12 to 18A, 1NO+1NC, class 10A, EverLink BTR screw connectors
Brand: Clipsal
SKU: LRD318
Alternatively Known As: Thermal overload relay, TeSys Deca relay, LRD relay
Technical Specifications
- Rated insulation voltage: 600V (CSA), 690V (IEC 60947-4-1)
- Control type: Red push-button for stop, blue push-button for reset.
- Tripping threshold: 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1.
- Phase failure sensitivity: Tripping current 130% of Ir on two phases.
- Dielectric strength: 1.89 kV at 50 Hz conforming to IEC 60947-1.
- Flame retardance: V1 conforming to UL 94.
- Mechanical robustness: Shocks 15 Gn for 11 ms, vibrations 4 Gn.
- Dimensions (H x L x W): 70mm x 123mm x 55mm
- Weight: 0.375 kg
Key Features
- Differential thermal overload relay with 1NO+1NC configuration.
- Rated operational voltage of 690VAC.
- Thermal protection adjustment range of 12 to 18A.
- EverLink BTR screw connectors for reliable connections.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection in various applications
Standards & Compliance
- Complies with EN/IEC 60947-4-1 for safety and performance standards.
Environmental Benefits
- Packaging made with recycled cardboard.
- Packaging without single-use plastic.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The TeSys LR.D Thermal Overload Relay is available now for immediate purchase. Ideal for industrial applications requiring reliable motor protection.
