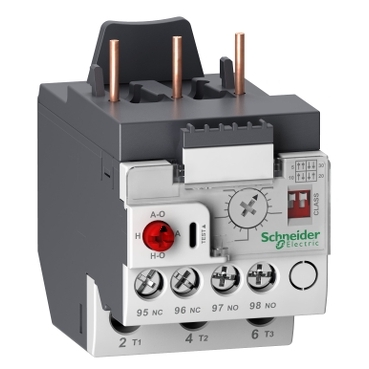

Product Name/Title: TeSys LR9, Overload relay, TeSys LRD, motor protection, withstand 6kV impulse and 2kV surge, 1.6A to 8A, electronic, thermal
Brand: Clipsal
SKU: LR9D08
Alternatively Known As: TeSys LRD, Electronic Thermal Overload Relay, Motor Protection Relay
Technical Specifications
- Power consumption: 300 mW
- Rated operational voltage: 690 V for power circuit, 660 V for signalling circuit
- Control type: red push-button for stop and manual reset
- Connections: screw clamp terminals for control and power circuits
- Rated insulation voltage: 1000 V for power circuit, 690 V for signalling circuit
- Tripping threshold: 1.25 In
- Time range: 1.5 to 4 min for automatic reset
- Dielectric strength: 6 kV at 50 Hz
- Dimensions (H x L x W): 72.5mm x 79.9mm x 45mm
- Weight: 0.18 kg
Key Features
- Withstands 6kV impulse and 2kV surge.
- Thermal overload class adjustable from 1.6A to 8A.
- Designed for compatibility with various contactors.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Motor protection in various machinery and equipment.
Standards & Compliance
- Complies with EN/IEC 60947-4-1 and EN/IEC 60947-5-1 for safety and performance.
Environmental Benefits
- Complies with environmental standards for safe disposal.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal TeSys LR9 Electronic Thermal Overload Relay is available now for immediate purchase. Ideal for industrial applications requiring reliable motor protection.
