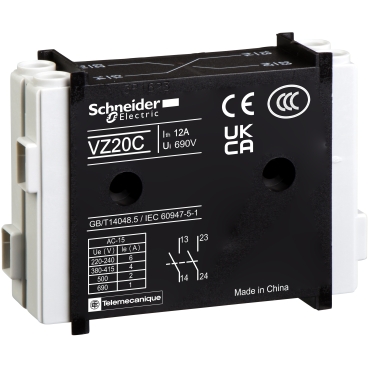

Product Name/Title: TeSys Mini-Vario, Auxiliary contact block, 1 NO + 1 NO
Brand: Clipsal
SKU: VZ20
Alternatively Known As: TeSys Vario Auxiliary Contact, Auxiliary Contact Block, TeSys Mini-Vario Contact Block
Technical Specifications
- Rated operational voltage: 690 V AC 50/60 Hz
- Mechanical durability: 100,000 cycles
- Electrical durability: 30,000 cycles DC / 1,000,000 cycles AC
- Connections: screw clamp terminals for 0.75-1.5 mm² flexible and 1-2.5 mm² solid cables
- IP Rating: IP20 conforming to IEC 60529
- Rated impulse withstand voltage: 8 kV
- Conventional free air thermal current: 12 A
- Conventional enclosed thermal current: 10 A
- Tightening torque: 0.7 N.m on screw clamp terminals
- Dimensions (H x L x W): 65mm x 48.5mm x 20mm
- Weight: 0.05 kg
Key Features
- 2NO contacts rated for AC operation until 12A/690V and DC operation until 8A/250V.
- Compatible with TeSys Vario V02 to V6 switch bodies.
- Multi standards certified (IEC, UL, CSA, CCC, EAC).
- Green Premium compliant (RoHS/REACh).
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Suitable for use with TeSys Vario switch bodies in various industrial applications.
Standards & Compliance
- Complies with IEC 60947-5 for safety and performance standards.
Environmental Benefits
- Green Premium compliant (RoHS/REACh) ensures reduced environmental impact.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The TeSys Mini-Vario Auxiliary Contact Block is available now for immediate purchase. Ideal for industrial applications requiring reliable contact solutions.
