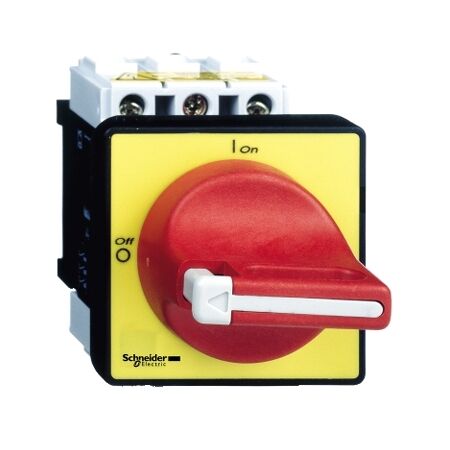

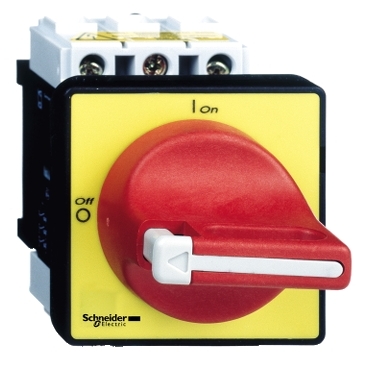

Product Name/Title: TeSys Mini-Vario, Emergency stop switch disconnector, 25A, on door
Brand: Clipsal
SKU: VCF0
Alternatively Known As: Emergency Stop Switch, Safety Disconnector, TeSys Vario Switch
Technical Specifications
- Rated operational voltage: 690 V AC 50/60 Hz
- Rated operational current: 14.5 A AC-23 at 400 V
- Rated operational power: 11 kW at 500 V (AC-23A)
- Making capacity: 250 A at 400 V AC-21A
- Breaking capacity: 200 A at 400 V (AC-21A)
- Rated short-circuit making capacity: 1 kA at 400 V
- Rated impulse withstand voltage: 8 kV
- Mechanical robustness: vibrations 10...150 Hz, shocks 11 ms
- Control type: rotary handle
- Dimensions (H x L x W): 74mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Emergency stop switch disconnector with rotary handle
- High mechanical and electrical durability with 100,000 cycles
- IP20 and IP65 rated for protection against dust and water
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery control and safety systems
- Commercial: Equipment requiring emergency stop functionality
Standards & Compliance
- Complies with IEC 60947-3 for safety and performance standards.
Environmental Benefits
- Halogen-free product
- PVC-free design
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal TeSys Mini-Vario Emergency Stop Switch Disconnector is available now for immediate purchase. Ideal for industrial applications requiring reliable safety control.
