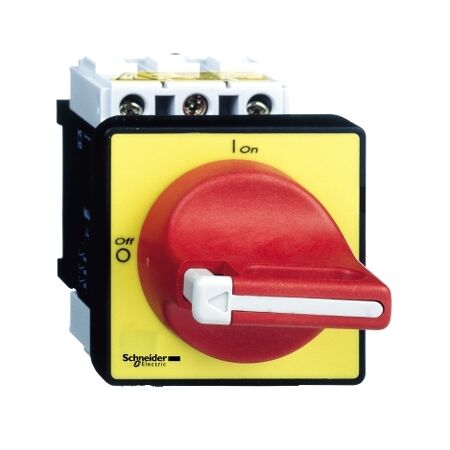

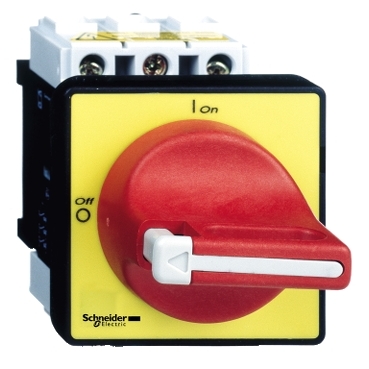

Product Name/Title: TeSys Mini-Vario, Emergency stop switch disconnector, 40A, on door
Brand: Clipsal
SKU: VCD2
Alternatively Known As: Emergency Stop Switch, Safety Disconnector, TeSys Vario Switch
Technical Specifications
- Rated operational voltage: 690 V AC 50/60 Hz
- Rated operational current: 29 A AC-23 at 400 V
- Rated operational power: up to 15 kW at 690 V
- Mechanical durability: 100,000 cycles
- Electrical durability: 100,000 cycles AC-23, 3,000 cycles DC-1
- Connections: screw clamp terminals for solid and flexible cables
- Rated impulse withstand voltage: 8 kV
- Breaking capacity: 320 A at 400 V
- Rated conditional short-circuit current: 10 kA at 400 V
- Dimensions (H x L x W): 74mm x 60mm x 60mm
- Weight: 0.215 kg
Key Features
- Emergency stop switch disconnector with rotary handle
- High mechanical and electrical durability with 100,000 cycles
- IP20 and IP65 rated for protection against dust and water
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery control and safety systems
- Commercial: Equipment requiring emergency stop functionality
Standards & Compliance
- Complies with IEC 60947-3 for safety and performance standards.
Environmental Benefits
- Packaging made with recycled cardboard and PVC free.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal TeSys Mini-Vario Emergency Stop Switch Disconnector is available now for immediate purchase. Ideal for industrial applications requiring reliable emergency stop functionality.
