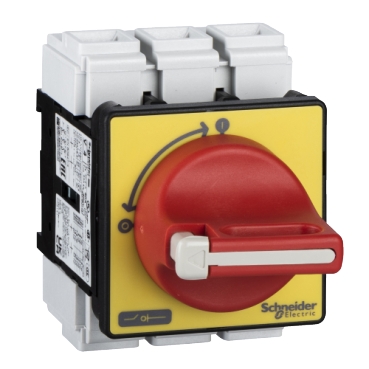

Product Name/Title: TeSys Mini-Vario, Emergency stop switch disconnector, 80A, on door
Brand: Clipsal
SKU: VCF4
Alternatively Known As: Emergency Stop Switch, Safety Disconnector, TeSys Vario Switch
Technical Specifications
- Rated operational voltage: 690 V AC 50/60 Hz
- Rated operational current: 57 A AC-23 at 400 V
- Mechanical durability: 30,000 cycles
- Electrical durability: 30,000 cycles AC-21
- IP Rating: IP20 and IP65
- Rated impulse withstand voltage: 8 kV
- Conventional free air thermal current: 80 A
- Breaking capacity: 640 A at 400 V
- Tightening torque: 4 N.m on screw clamp terminals
- Dimensions (H x L x W): 83mm x 60mm x 60mm
- Weight: 0.56 kg
Key Features
- Emergency stop switch disconnector with rotary handle for safety.
- High mechanical and electrical durability with 30,000 cycles.
- Rated operational current of 80A and voltage of 690V AC.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery control and safety systems
- Commercial: Factories, workshops, and assembly lines
Standards & Compliance
- Complies with IEC 60947-3 for safety and performance standards.
Environmental Benefits
- Packaging made with recycled cardboard.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal TeSys Mini-Vario Emergency Stop Switch Disconnector is available now for immediate purchase. Ideal for industrial applications requiring reliable safety control.
