V1

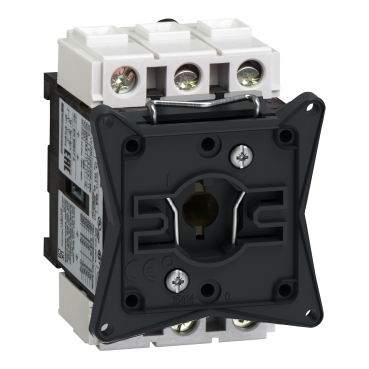

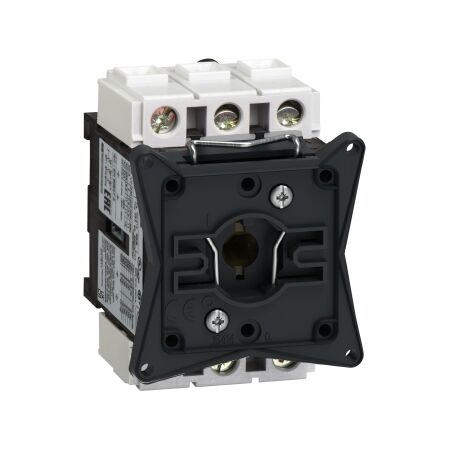

TeSys Mini-Vario, Switch body, for switch-disconnector, 3 poles, 32A

$10.60 List price: $15.80
+ −
30 Days Return Delivery Options
Weight: 0.200 kg

Product Name/Title: TeSys Mini-Vario, Switch body, for switch-disconnector, 3 poles, 32A

Brand: Clipsal

SKU: V1

Alternatively Known As: TeSys Vario Switch Body, Mini Vario Switch, 3 Pole Switch Disconnector

Technical Specifications
  • Rated operational voltage: 690 V AC 50/60 Hz.
  • Rated operational current: 21.8 A AC-23 Ue: 400 V.
  • Rated operational power: 11 kW at 500 V (AC-23A).
  • Making capacity: 320 A at 400 V AC-21A.
  • Breaking capacity: 250 A at 400 V (AC-21A).
  • Rated impulse withstand voltage: 8 kV.
  • Tightening torque: 2.1 N.m on screw clamp terminals.
  • Dimensions (H x L x W): 74mm x 60mm x 55mm
  • Weight: 0.2 kg
Key Features
  • 3 poles with a rated operational current of 32A.
  • Mechanical durability of 100,000 cycles.
  • Electrical durability of 100,000 cycles AC and 3,000,000 cycles DC.
  • IP20 protection rating.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Suitable for various industrial applications requiring reliable switch-disconnection.
Standards & Compliance
  • Complies with IEC 60947-3 for safety and performance standards.
Environmental Benefits
  • Halogen-free product.
  • PVC-free design.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The TeSys Mini-Vario Switch Body for Switch-Disconnector is available now for immediate purchase. Ideal for industrial applications requiring reliable switch-disconnection.

V1 (V1, 254 Kb) [Download]
