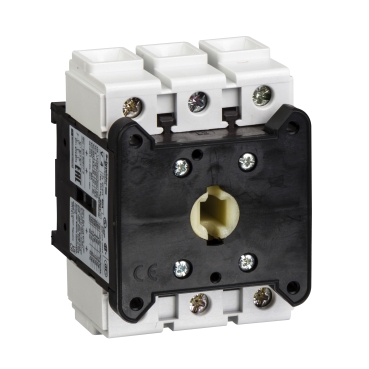

Product Name/Title: TeSys Mini-Vario, Switch body, for switch-disconnector, 3 poles, 80A
Brand: Clipsal
SKU: V4
Alternatively Known As: TeSys Vario Switch Body, Mini Vario Switch, Switch Disconnector
Technical Specifications
- Rated operational voltage: 690 V AC 50/60 Hz
- Rated operational power: 15 kW at 230...240 V (AC-3), 22 kW at 400...415 V (AC-3)
- Making capacity: 800 A at 400 V AC-21A
- Breaking capacity: 640 A at 400 V (AC-21A)
- Rated short-circuit making capacity: 2.1 kA at 400 V
- Rated impulse withstand voltage: 8 kV
- Tightening torque: 4 N.m on screw clamp terminals
- Dimensions (H x L x W): 83mm x 65mm x 60mm
- Weight: 0.5 kg
Key Features
- 3 poles with a rated operational current of 80A.
- Mechanical durability of 30,000 cycles.
- Electrical durability of 30,000 cycles AC-23 and 3,000 cycles DC.
- IP20 protection rating.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Suitable for various industrial applications requiring reliable switch-disconnection.
Standards & Compliance
- Complies with IEC 60947-3 for safety and performance standards.
Environmental Benefits
- Halogen-free product, PVC-free, and compliant with environmental regulations.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal TeSys Mini-Vario Switch Body for Switch-Disconnector is available now for immediate purchase. Ideal for industrial applications requiring reliable switch-disconnection.
