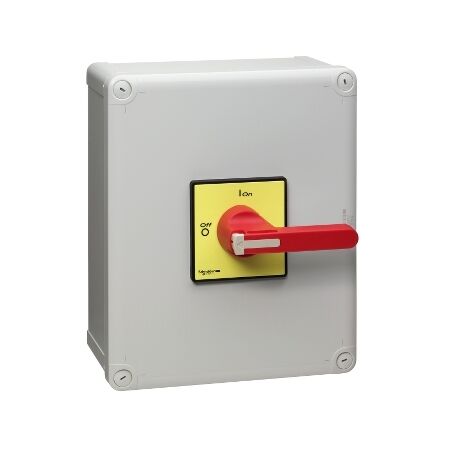

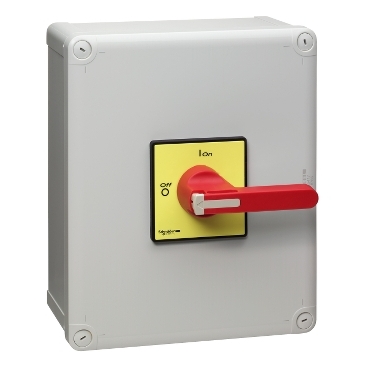

Product Name/Title: TeSys Mini-Vario, TeSys Vario enclosed, emergency switch disconnector, 100A, IP65, long handle
Brand: Clipsal
SKU: VCF5GEN
Alternatively Known As: Emergency Stop Switch, Switch Disconnector, TeSys Vario Disconnector
Technical Specifications
- Rated operational voltage: 690 V AC
- Rated operational current: 68.5 A (AC-23A) at 400 V
- Mechanical durability: 30,000 cycles
- Electrical durability: 30,000 cycles AC-21, 30,000 cycles DC-1
- Rated impulse withstand voltage: 8 kV
- Rated operational power: 37 kW at 400 V (AC-23)
- Breaking capacity: 1000 A at 400 V (AC-21A)
- Fire resistance: 960 °C conforming to IEC 60595-2-1
- Tightening torque: 22.6 N.m on screw clamp terminals
- Dimensions (H x L x W): 291mm x 191mm x 241mm
- Weight: 2.19 kg
Key Features
- Enclosed emergency stop switch disconnector with a long handle.
- IP65 rated for protection against dust and water.
- Rated operational current of 100A.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery control and safety systems
- Commercial: Electrical distribution and emergency shutdown systems
Standards & Compliance
- Complies with IEC 60947-4-1 and IEC 60204 for safety and performance standards.
Environmental Benefits
- Green Premium product with packaging made from recycled cardboard.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal TeSys Mini-Vario Emergency Switch Disconnector is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable emergency shutdown solutions.
