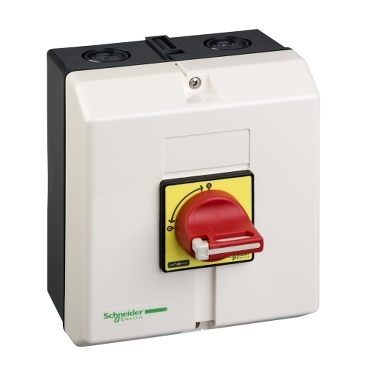

Product Name/Title: TeSys Mini-Vario, TeSys Vario enclosed, emergency switch disconnector, 50A, IP65
Brand: Clipsal
SKU: VCF3GE
Alternatively Known As: Emergency Stop Switch, Rotary Handle Disconnector, Enclosed Switch Disconnector
Technical Specifications
- Rated operational voltage: 690 V AC
- Rated operational current: 41.5 A (AC-23A) at 400 V
- Mechanical durability: 30,000 cycles
- Electrical durability: 30,000 cycles AC-23, 30,000 cycles DC-1
- Rated impulse withstand voltage: 8 kV
- Rated operational power: 22 kW at 400 V (AC-23)
- Breaking capacity: 500 A at 400 V (AC-21A)
- Fire resistance: 960 °C conforming to IEC 60595-2-1
- Tightening torque: 4 N.m on screw clamp terminals
- Dimensions (H x L x W): 180mm x 152mm x 157mm
- Weight: 0.93 kg
Key Features
- Enclosed emergency stop switch disconnector with rotary handle.
- IP65 rated for protection against dust and water.
- High performance with a rated operational current of 41.5 A at 400 V.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Factories, manufacturing plants, and heavy machinery operations
Standards & Compliance
- Complies with IEC 60947-4-1 and IEC 60204 for safety and performance standards.
Environmental Benefits
- Green Premium product with packaging made from recycled cardboard.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The TeSys Mini-Vario Emergency Switch Disconnector is available now for immediate purchase. Ideal for industrial applications requiring reliable disconnection.
