NSYTBS241912HT

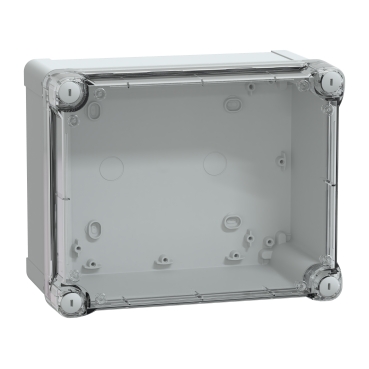

Thalassa, ABS box, IP66 IK07 RAL7035 Int.H225W175D120 Ext.H241W194D127 Transp.cover H40


$51.20 List price: $76.90
+

Weight: 0.820 kg

Product Name/Title: Thalassa, ABS box, IP66 IK07 RAL7035 Int.H225W175D120 Ext.H241W194D127 Transp.cover H40

Brand: Clipsal

SKU: NSYTBS241912HT

Alternatively Known As: Thalassa TBS, Industrial Enclosure, ABS Box

Technical Specifications
  • Electrical insulation class: Class II
  • Ambient air temperature for storage: -15...40 °C
  • Ambient air temperature for operation: -25...60 °C
  • Fire resistance: 650 °C conforming to IEC 60695-2-11
  • Standards: IEC 62208
  • Product certifications: TÜV
  • Dimensions (H x L x W): 241mm x 127mm x 194mm
  • Weight: 0.82 kg
Key Features
  • IP66 rated for protection against dust and water.
  • IK07 rated for impact resistance.
  • Made from ABS with 45% post-industrial recycled content.
  • Wall mounted design with high transparent cover.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and compliance.
Applications
  • Industrial: Suitable for various multi-purpose applications.
Standards & Compliance
  • Complies with IEC 62208 for safety and performance standards.
Environmental Benefits
  • Made with 45% post-industrial recycled content.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Thalassa Industrial Box is available now for immediate purchase. Ideal for various industrial applications.
