MG1-100

Three Phase 80A Main Switch


$12.50 List price: $13.90
+

Weight: 0.900 kg
Product Name/Title:

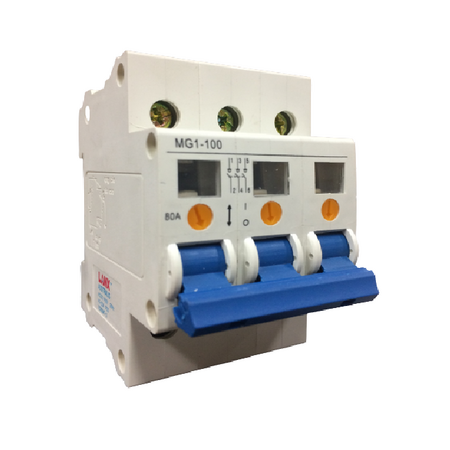

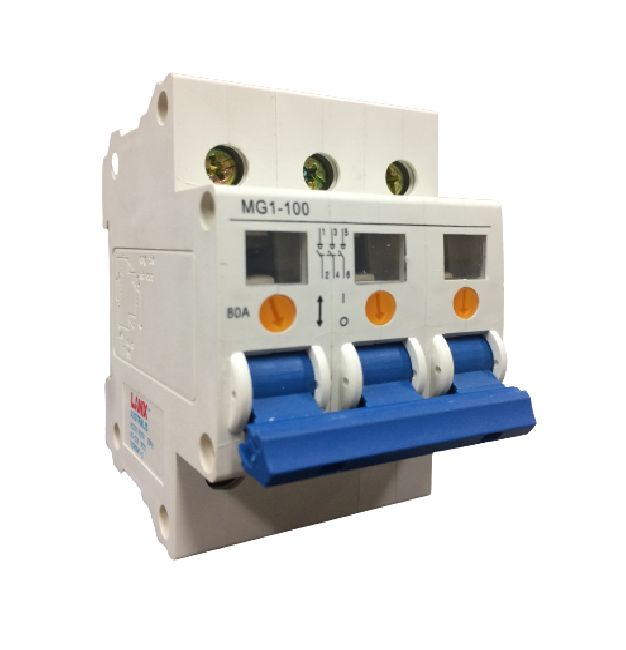

Three Phase 80A Main Switch

Brand: Lanx

Part Number:
MG1-100

Alternatively Known As:
- 80A Three Phase Main Switch
- MG1-100 Main Switch

Technical Specifications:
- Number of Poles: 3P
- Rated Current: 80A
- Rated Voltage: AC 415V
- Rated Frequency: 50/60Hz
- Electro-Mechanical Endurance: 10,000 cycles
- Installation: DIN rail mount
- Dimensions: 95 W x 160 H x 75 D
- Weight: 0.9 kg

Key Features:
- Durable construction for industrial use
- Compatible with standard three-phase systems
- Easy DIN rail mounting design

Professional Installation Requirements:
- Installation by a licensed professional is mandatory
- Ensure compatibility with three-phase systems
- Follow provided guidelines for safe installation

Applications:
- Industrial
- Commercial
- High-capacity electrical systems

Warranty Information:
- Standard manufacturer warranty applies
- Covers manufacturing defects
- Valid only with licensed electrician installation
- Retain proof of purchase for claims
- Does not cover improper use

Standards & Compliance:
- Complies with IEC 60947-3 standards
