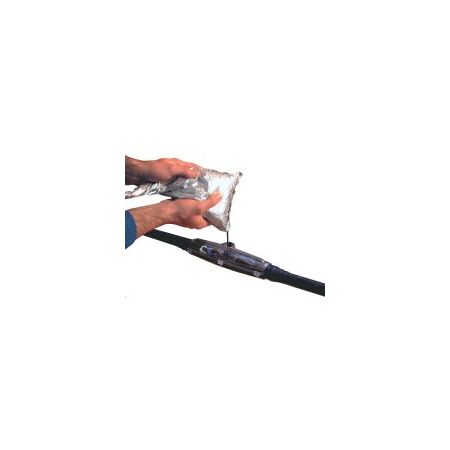

Type M- Straight Through Cable Joints:
FEATURES
- Suitable for connecting low voltage plastic insulated cables or PVC, PE, VPE and EPR insulated conductors
- High electrical insulation value
- Large insertion opening for easy casting
- Compact size
- Watertight
- High mechanical strength
- Standard resin can be stored for up to 40 months
- High quality, transparent and shockproof plastic mould
- Visible splice position before casting
- Extremely quick and easy to use, saving time and money
- Resistant to UV radiation, alkaline earths and chemical agents
- Ready for immediate use
Voltage Level
U0/U (Um) 0.6/1 (1.2) kV
APPLICATIONS
- Indoor and outdoor
- Underground
- Cable trays
- Water
Product Supplied With
- Transparent mould
- Lid and spacer plate
- Sealing tape
- Gloves
- Easy to follow mounting instructions
- Hydrolysis resistant PUR cast resin, containing the correct volume needed ready for mixing, in handy two chamber mixing bag
Part No |
Type |
Cable |
|
ALC124M11 |
M11 |
7-26 |
|
ALC124M12 |
M12 |
14-34 |
|
ALC124M13 |
M13 |
21-43 |
|
ALC124M14 |
M14 |
26-48 |
|
ALC124M15 |
M15 |
35-63 |
|
ALC124M16 |
M16 |
48-81 |
