Fittings - General Information
Material
Unless otherwise noted, all fittings are punch press formed from plate or strip steel.
Fitting Application
All product drawings illustrate only one application of each fitting. In most cases many other applications are possible. The members shown in the illustrations are P1000, 41mm square, except where noted otherwise. All 14mm diameter holes use M12 x 24 hex head set screws and M12 nuts - P1010, P4010 or P5510 - depending on the channel used. Nuts and bolts are not included with the fitting and must be ordered seperately
Design Load Data
Design load data, where shown, is based on the ultimate strength of the connection with a safety factor of 2.5.
Finishes
All fittings in this section are available in zinc plated finish to Australian Standard AS1789 and Hot Dipped Galvanised to AS/NS4680.
General Data

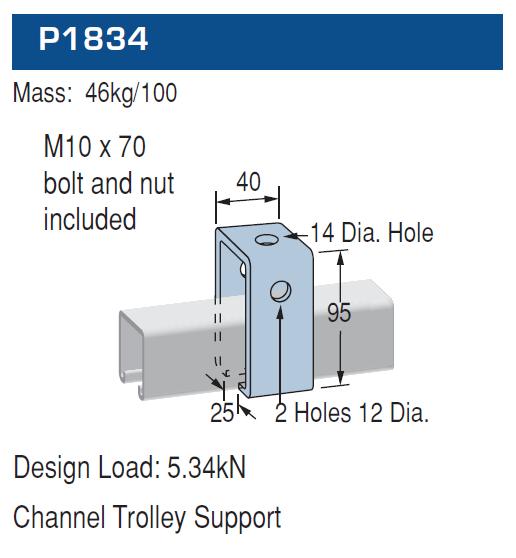

| Part No. | P1834H |
| Finish | Hot Dipped Galvanised |
| Description |
U Shape Fitting
|
| Hole Size |
14mmDiameter
|
| Hole Spacing |
21mm from end
|
|
48mm on centre
|
|
| Width | 40mm |
| Thickness | 6mm |
| Box/Bndl Qty | |
| Mass kg/100 |
46 kg |
General Data applies to Flat Plate, 90 Degree, ANgular, "Z", "U" & Wing Shape Fittings
**For further product information please see attachment Catalogue.
