Home/Heating and Cooling/Wall Exhaust Fan/Vogue VCW254 Exhaust Fan

Save 43%

SKU: VCW254

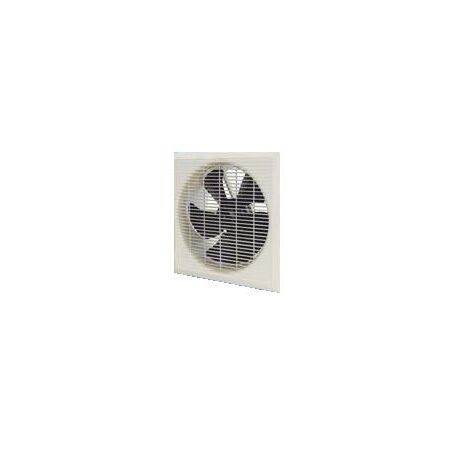

Vogue VCW254 Exhaust Fan

$660.80 List price: $1,169.50

+ −

30 Days Return Delivery Options

Weight: 3.000 kg

Description

Applications

Commercial and residential ventilation applications where higher airflows are required such as restaurants, offices, store rooms, computer rooms, switch board ventilation, cooking areas etc.

Installation

The Vogue series of modern ceiling/wall mounted fans includes quick fitting swing locks to keep fan in place for suspended ceilings or plasterboard wall and ceilings. It can be connected to ducting with the use of the optional duct adapter. External weatherproof louvres may also be utilised.

Features

Powerful air flow and pressure performance.

High quality “Continuous Run” motor.

Contemporary design.

Easy to remove grille for cleaning.

Can be connected to ducting with the use of the optional duct adapter.

Speed-controllable.

Motor protection IP44.

Auto-reset thermal cutout protection fitted.

Bearings – sealed-for-life, ball.

220-240V, 50Hz.

Technical Data

Model Number	m³/hr^†	L/sec^†	Fan Speed Rpm	dBA @ 3m	Watts	Volts	Amps
VCW202	792	220	2580	52	70	240	0.36
VCW204	468	130	1440	39	30	240	0.14
VCW252	1620	450	2520	51	110	240	0.63
VCW254	1008	280	1380	40	60	240	0.28
VCW302	2376	660	2460	62	180	240	0.79
VCW304	1728	480	1320	47	90	240	0.41
VCW306	1296	360	960	37	50	240	0.23

^†Air flow without duct & fittings
