VCW302

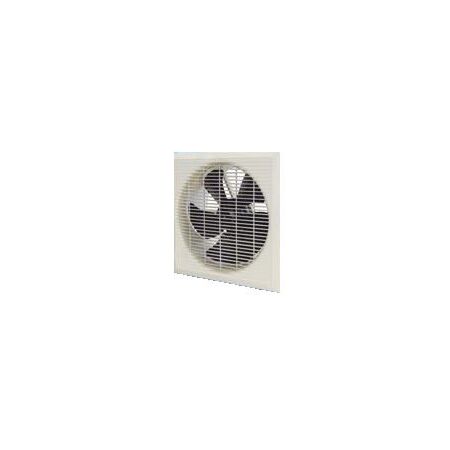

Vogue VCW302 Exhaust Fan

$903.40 List price: $1,716.50
+ −
30 Days Return Delivery Options
Weight: 4.000 kg

Applications

Commercial and residential ventilation applications where higher airflows are required such as restaurants, offices, store rooms, computer rooms, switch board ventilation, cooking areas etc.

Installation

The Vogue series of modern ceiling/wall mounted fans includes quick fitting swing locks to keep fan in place for suspended ceilings or plasterboard wall and ceilings. It can be connected to ducting with the use of the optional duct adapter. External weatherproof louvres may also be utilised.

Features

Powerful air flow and pressure performance.

High quality “Continuous Run” motor.

Contemporary design.

Easy to remove grille for cleaning.

Can be connected to ducting with the use of the optional duct adapter.

Speed-controllable.

Motor protection IP44.

Auto-reset thermal cutout protection fitted.

Bearings – sealed-for-life, ball.

220-240V, 50Hz.



Technical Data

Model Number

m3/hr†

L/sec†

Fan Speed Rpm

dBA @ 3m

Watts

Volts

Amps

VCW202

792

220

2580

52

70

240

0.36

VCW204

468

130

1440

39

30

240

0.14

VCW252

1620

450

2520

51

110

240

0.63

VCW254

1008

280

1380

40

60

240

0.28

VCW302

2376

660

2460

62

180

240

0.79

VCW304

1728

480

1320

47

90

240

0.41

VCW306

1296

360

960

37

50

240

0.23

†Air flow without duct & fittings
