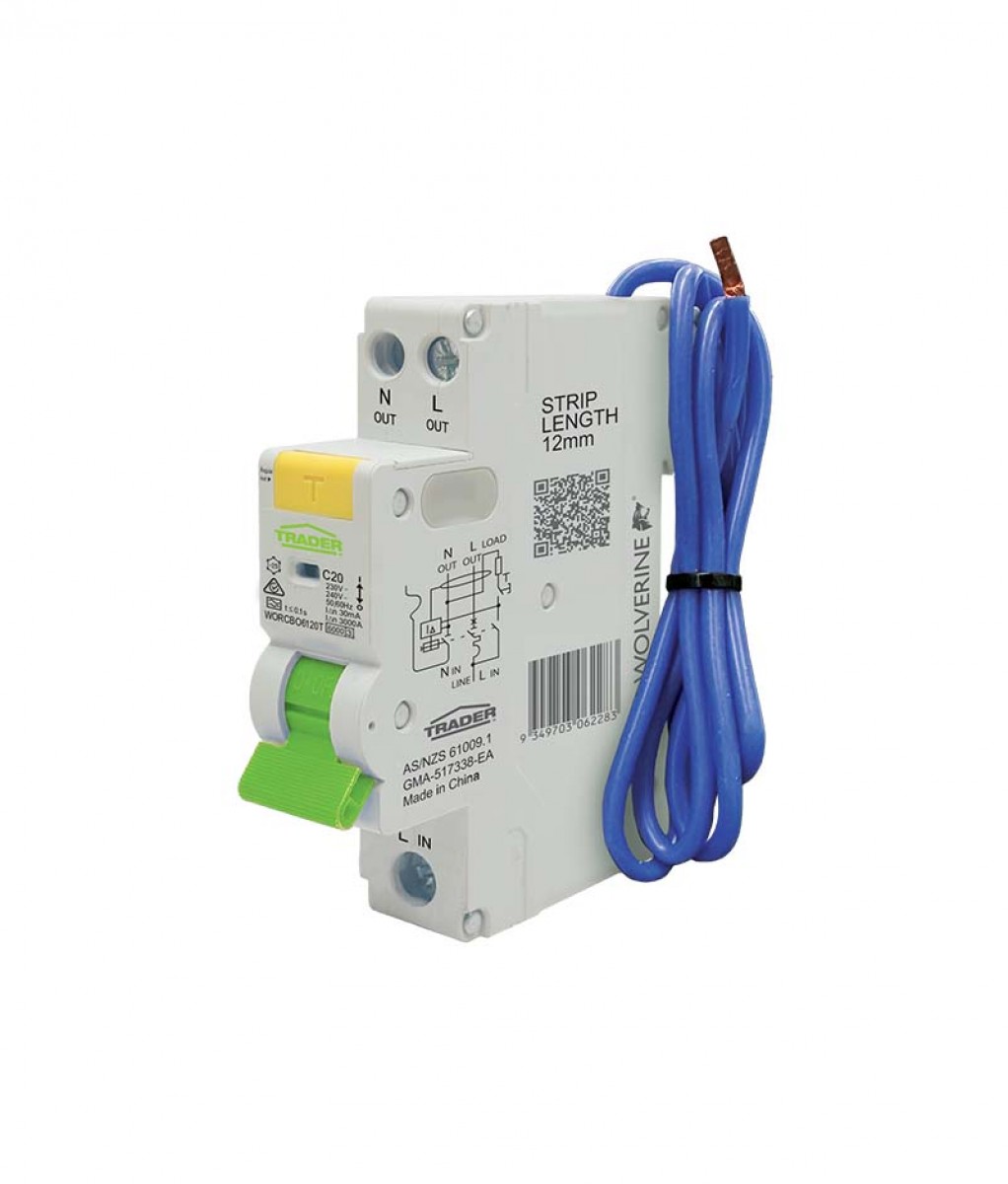

Product Name/Title: Wolverine - RCBO Residual Current Breaker with Overcurrent Protection 6kA 1 Pole 20A 230 240V ac 30mA Type A 1 Module with Neutral Tail - WORCBO6120T
Brand: Trader
SKU: WORCBO6120T
Alternatively Known As: RCBO, Residual Current Circuit Breaker, Combination Circuit Breaker
Technical Specifications
- Rated Current: 20A
- Voltage: 230-240V AC
- Tripping Sensitivity: 30mA
- Breaking Capacity: 6kA
- Pole Configuration: 1 Pole
- Neutral Tail: Included
- Module Size: 1
- Dimensions (H x L x W): 90mm x 70mm x 18mm
- Weight: 0.5 kg
Key Features
- Residual current protection with overcurrent protection
- Compact design, 1 Module size
- Type A for protection against earth leakage currents
Professional Installation Requirements
- Professional installation by a licensed electrician is strongly recommended.
Applications
- Residential: Homes, apartments
- Commercial: Retail, hospitality
- General: Electrical safety in various applications
Standards & Compliance
- Complies with AS/NZS 61009 for residual current devices.
Environmental Benefits
- Enhances electrical safety and reduces risk of electric shock.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Wolverine RCBO Residual Current Breaker with Overcurrent Protection is available now for immediate purchase. Ideal for enhancing the safety of electrical installations.
