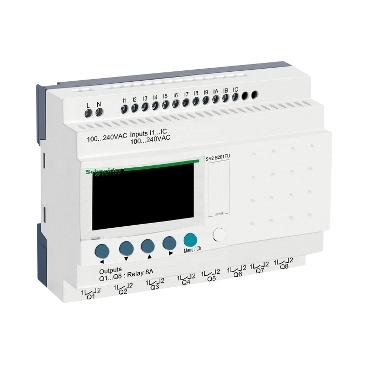

Product Name/Title: Zelio Logic, Compact smart relay, 20 I/O, 100...240 V AC, clock, display
Brand: Clipsal
SKU: SR2B201FU
Alternatively Known As: Smart Relay, Compact Relay, Zelio Relay
Technical Specifications
- Rated supply voltage: 100...240 V AC
- Supply frequency: 50/60 Hz
- Maximum supply current: 100 mA at 100 V
- Number of outputs: 8 relay
- Output voltage limits: 5...30 V DC, 24...250 V AC
- Protection type: against inversion of terminals
- Mechanical durability: 10,000,000 cycles
- IP degree of protection: IP20 (terminal block), IP40 (front panel)
- Operating temperature: -20...40 °C
- Storage temperature: -40...70 °C
- Dimensions (H x L x W): 80mm x 120mm x 100mm
- Weight: 0.38 kg
Key Features
- 20 I/O configuration for versatile applications.
- Clock and display for real-time monitoring.
- High electrical durability with 500,000 cycles at rated load.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial automation and control systems
- Building management systems
- Process control applications
Standards & Compliance
- Complies with IEC 61000 for EMC standards.
Environmental Benefits
- Complies with environmental directives and standards.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Zelio Logic Compact Smart Relay is available now for immediate purchase. Ideal for industrial automation and control systems.
